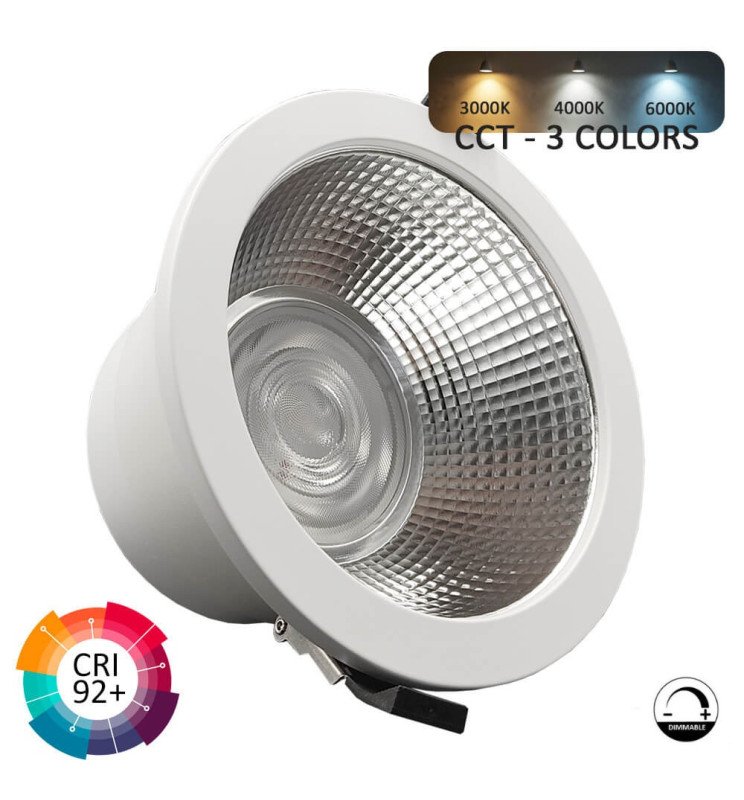

Downlight LED Circular 40W | Dimmable Driver Lifud |3CCT | CRI+92 | IP65 | Ø145mm Cut Ø145mm

The Recessed LED Spotlight 40W Dimmable is a professional lighting solution designed to provide maximum efficiency, versatility and light quality both indoors and outdoors. Equipped with a adjustable LIFUD driver (compatible with TRIAC, 0-10V or DALI/PUSH systems) and a 3CCT color temperature selector (3000K / 4000K / 6000K)This downlight allows you to customize the lighting according to each space and need.

With a high color rendering index (CRI+92)The natural, sharp and realisticIt is ideal for environments that require accurate color perception, such as retail, offices, hotels, restaurants or high-end residential spaces. In addition, its technology NO FLICK eliminates unpleasant flicker, caring for visual health and providing optimum comfort.

Modern design in high quality aluminum includes a white interchangeable ringavailable in round or squareThis facilitates a versatile, aesthetic installation, adapted to different architectural styles. With a 24° opening angleThe light from the light source, offers a focused light that is perfect for highlighting objects, creating selective atmospheres or highlighting specific areas.

Thanks to its IP65 protectionThis recessed spotlight is prepared to withstand humid and dusty conditions, making it suitable both for demanding indoor installations as for covered outdoor areas.

Key Benefits

• Advanced regulationCompatible with TRIAC, 0-10V and DALI/PUSH.
• 3CCT integratedColor selection between 3000K, 4000K or 6000K.
• High color fidelityCRI+92 for truer colors.
• IP65 protectionSafe for indoor and outdoor use.
• Opening angle 24°.Focused and professional lighting.
• NO FLICK TechnologyNo flickering, guaranteed visual comfort.
• Versatile installationCut Ø145mm adaptable to multiple projects.

Available Regulation Options

Depending on the project requirements, the projector can be supplied with different types of dimmable LIFUD drivers:

• TRIAC ? Model LF40WTRIAC / LF-ABT040
  Compatible with traditional phase cut dimmers, ideal for residential or basic commercial environments.
• 0?10V ? Model LF40W0-10V / LF-ABA040
  Recommended for installations with analog control, very common in offices and stores.
• DALI/PUSH ? Model LF40WDALI / LF-ADD040
  Perfect for home automation systems or technical installations that require centralized control and professional integration.

Important Pack Information

This product is supplied in pack formatconsisting of:

• Part Number DNRW30W-CCT-91390 (downlight body).
• LIFUD driver selected (TRIAC, 0-10V or DALI/PUSH).

The customer should note that the downlight is delivered as standard with a GxTronic driver. For the correct operation with the indicated performance, it is necessary to remove the GxTronic driver y connect the LIFUD driver included in the package.



This ensures superior performance, greater dimming stability and extended life of the LED system.

Recommended Applications

Thanks to its technical features and versatile design, this recessed spotlight is ideal for:

• Stores and retail stores ? to highlight products in displays or showcases.
• Hotels and restaurants ? elegant lighting in halls, dining rooms, bars or lounge areas.
• Offices and meeting rooms ? clear and professional light that enhances the spaces.
• Museums and art galleries ? precise targeting for works and exhibition pieces.
• High-end housing ? decorative lighting in halls, corridors or covered terraces.
• Health centers and clinics ? uniform, flicker-free, vision-friendly light.
• Protected exteriors (porches, driveways, pergolas) ? resistance to dust and humidity thanks to IP65 protection.

Product Data Sheet

 REFERENCE

LFDIM-91390

 Power rating

40w

 Nominal Voltage

AC180-265V

 Light Temperature

3CCT SELECT 3000K-4000K-6500K

 CRI -Cromatic Reproduction Index

92

 Building Material

Aluminum +PC

 Luminosity-Lm

4000

 Type of LEDs

COB

 Opening Angle (º)

24°

 LED Diode Efficiency (Lm/W)

120Lm/W

 Luminous efficacy (Lm/W)

100 Lm/W

 Dimable

YES

 Certificates

CE, CMIM, RoHS

 IP rating

IP65-Outdoor

 Estimated Life LED Diode (H)

25.000

 Dimensions (mm)

Ø 160 mm x H110 mm

 Working Frequency (Hz)

50/60Hz

 Temperature Range (ºC)

-20°C ~ +55°C

 Ignition Cycles

100.000

 Start-up time (s)

0,2s

 Ceiling Cutout (mm)

Ø 145mm

 Glare Index (UGR)

21

 Driver included

YES

 Driver included

Lifud Driver

 Energy Class (2021-UE-2019/2015)

A+

 Energy Class (2023 - EU-2019/2015)

E

 Warranty years

5
