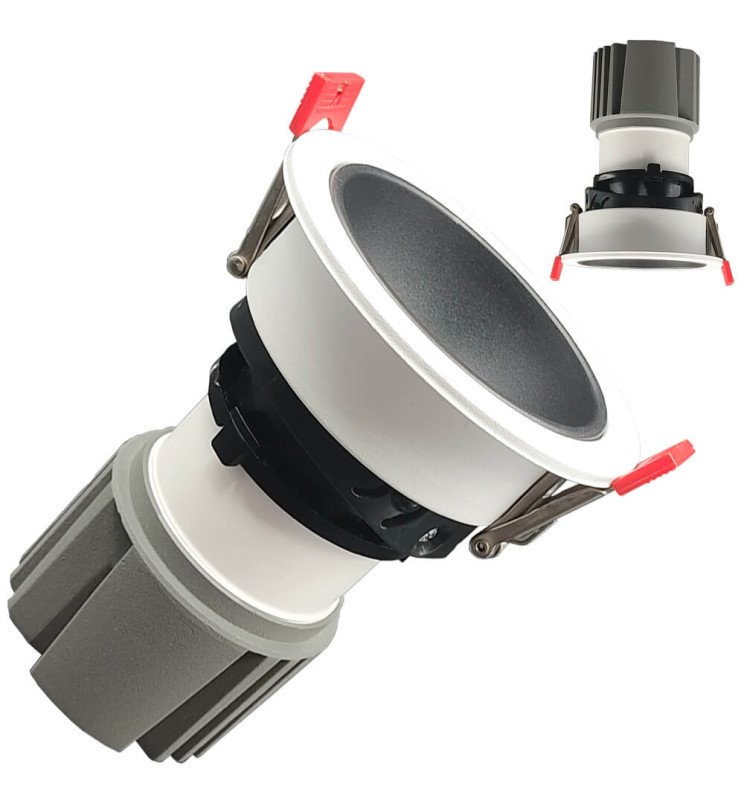

Tilting circular LED downlight 15W - White - Oculus Series - CRI+92 - UGR13

The Downlight LED 15W Oculus Series is a high-performance luminaire designed for those seeking superior light quality and customized design. Equipped with a Bridgelux COB chip from high brightness (130Lm/W) and a LRC+92This downlight ensures accurate and natural color rendering, making it the ideal choice for environments requiring professional lighting, such as photographic studios, commercial premises or work areas. In addition, its under UGR<13 ensures a glare-free environment, providing greater visual comfort and improving productivity in the workplace.

Manufactured with materials made of Aluminum + PCThis product not only provides durability, but also optimizes heat dissipation, thus prolonging the life of the luminaire. Its external driver improves luminous efficiency by preventing the heat generated by the driver from affecting the LED diode, maximizing the life of the assembly.

One of the most outstanding features is the possibility of customize the color of the inner ring with options such as white, black, silver, gold or matte black, allowing you to adapt the downlight to any style of decoration, both in residential and commercial projects. This versatility in aesthetics adds a touch of luxury and exclusivity to any space. In addition, these inner rings are tilting, allowing you to adjust the direction of the light beam according to the needs of the space.

The Bridgelux COB diode not only offers a high energy efficiencybut also provides a superior light quality. Thanks to its index CRI+92In addition, colors are perceived more accurately, making objects and spaces look more natural and vibrant. In addition, the 36º angle allows you to focus light to highlight specific elements, ideal for creating dynamic environments and highlighting specific areas of a room or commercial space.

The bass UGR index also improves visual comfort, reducing eye fatigue and improving detail perception, making it the perfect solution for work areas, studios, offices and areas where clear, precise and distraction-free lighting is needed.

In summary, the Oculus Series LED Downlight 15W is the perfect solution for those looking for performance, customization and efficiency in a single product. Thanks to its advanced technical features and its customizable aesthetic design, this downlight is ideal for any project that requires high quality LED lighting.

Uses of the 15W Tilting Circular LED Downlight - White - Oculus Series - CRI+92 - UGR13

• Bathrooms
• Cabinets
• Bedrooms
• Showcases
• Showcases
• Aisles
• Stores
• Commercial Premises
• Work areas

Product Data Sheet

 REFERENCE

HSRW1-15W

 Nominal Power

15w

 Nominal Voltage

85V-265V

 Light Temperature

3000K - 4000K

 CRI -Cromatic Reproduction Index

92

 Building Material

Aluminum +PC

 Luminosity-Lm

1950 Lm

 LED Type

Bridgelux Chip Inside 12C3B

 Opening Angle (º)

36º

 LED Diode Efficiency (Lm/W)

160 Lm/w

 Luminous Efficacy (Lm/W)

130 Lm/W

 Certificates

CE - ROHS

 IP Rating

IP44

 Estimated Life LED Diode (H)

35.000

 Measurements (Mm)

Ø70xH75mm

 Working Frequency (Hz)

50/60Hz

 Temperature Range (ºC)

-20°C ~ +55°C

 Ignition Cycles

100.000

 Start-up time (S)

0,2s

 Ceiling Cut (Mm)

Ø75mm

 Glare Index (UGR)

13

 Energy Class (2021-UE-2019/2015)

A+

 Energy Class (2023 - EU-2019/2015)

E

 Warranty Years

3
