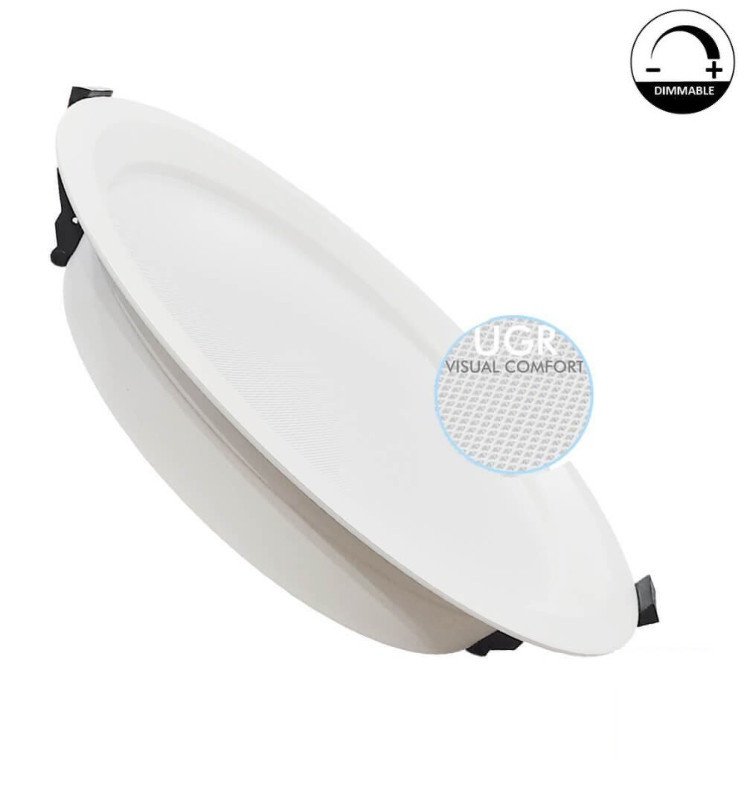

downlight led 40w circular - dimmable driver lifud - ip54 - cri +90 ugr17

the 40w led downlightequipped with a lifud adjustable driveris designed to meet the demands of professional projects that require efficiency, versatility and high visual comfort. it is supplied with standard with a certawhich incorporates color temperature selector (cct)The user can choose between different shades of light (such as warm, neutral or cold) and adapt the lighting to each space and time of day.

main characteristics

• adjustable lifud driveravailable in three versions (triac, 0?10v and dali/push), this driver allows to set the light intensity and according to the specific needs of the environment.
• cri >90 and ugr<17guarantees a excellent color reproductionThe new, ideal for spaces where color fidelity is essential (such as stores, offices, showrooms or homes), and its low glare index improves visual comfort even during prolonged use.
• 120º opening angleprovides uniform and effective illumination, avoiding dark areas and disturbing shadowsThis contributes to a more pleasant visual experience.
• ip54 protectionThe new system ensures resistance to dust and water splashes, which extends its installation possibilities to more demanding environments such as kitchens, bathrooms or semi-outdoor areas.

adjustment options

for projects where control of the luminous intensity is required, the downlight can be supplied with a adjustable lifud driver of your choice:



• dimable triac: model lf40wtriac / lf-abt040
  compatible with most phase cut regulators, ideal for domestic or basic commercial applications.
• dimmable 0?10v: model lf40w0-10v / lf-aba040
  recommended for installations with analog voltage controllers, widely used in offices and stores.
• dimmable dali/push: model lf40wdali / lf-add040
  perfect for home automation systems or professional installations that require centralized lighting management

?? important notice: lifud adjustable drivers do not include a color temperature selector (cct) or a power selector. however, they do incorporate dip switch for multi-voltage output, which allows the output current to be adjusted and, therefore, the final power of the downlight to be configured according to the mounting.

recommended applications

this downlight is ideal for:

• stores and stores: enhances products and spaces with high quality lighting.
• showrooms and showrooms: provides uniform illumination that highlights details and colors.
• receptions and offices: improves visual comfort and productivity in work environments.
• kitchens, dining and living rooms: provides adaptable and efficient lighting for the home.

additional benefits

• energy efficiency: reduces energy consumption from the first use thanks to high-performance LED technology.
• long durability: designed for long service life, minimizing maintenance costs.
• compatibility: is easily integrated into various electrical installations and lighting control systems.

product data sheet

 reference

lf-90644

 rated power

40w

 nominal voltage

85-265v

 light temperature

3000k - 4000k - 5700k

 cri -chromatic reproduction index

85

 construction material

aluminum +pc

 luminosity-lm

4400lm

 type of leds

smd 2835

 opening angle (º)

120º

 led diode efficiency (lm/w)

140 lm/w

 luminous efficacy (lm/w)

125 lm/w

 dimable

yes

 certificates

ce, cmim, rohs

 degree of ip

ip54

 estimated life of led diode (h)

40.000

 dimensions (mm)

ø235mm * h35mm

 working frequency (hz)

50/60hz

 temperature range (ºc)

-20°c ~ +55°c

 ignition cycles

100.000

 start-up time (s)

0,2s

 ceiling cut (mm)

ø 205mm

 glare index (ugr)

17

 driver included

yes

 driver included

lifud driver

 energy class (2021-eu-2019/2015)

a+

 energy class (2023 - eu-2019/2015)

e

 warranty years

3
